HYGIEIA
VENTILATED MOUSE CAGING

VRCCR82-112PSU

DESCRIPTION

HYGIEIA is a breakthtrough individually ventilated cage that flows air through the bedding to keep ammonia from forming. Using less than 1/2 of the airflow of conventional IVCs, cage changes can be safely extended to 21 days. This will save energy and enormous amounts of labor, which will save enough money for the system to pay for itself in 3-5 years. Lenderking can show you how to test your present system to see if ammonia levels are safely below the industry threshold at your cage change interval. Many users of these systems are discovering that they are not! This can be harming your research. Ammonia is harmful to you and your rodents. Now you can lower ammonia levels, extend cage change interval to 21 days and save money. No other system can make that claim.

5 Mice     30 ACH     21 Days


Safely Extending Cage Change Intervals To 21 Days Saves $$$

CFD Analysis tells the story of the airflow in the Hygieia Cage

Here's a List, but check out the pictures below

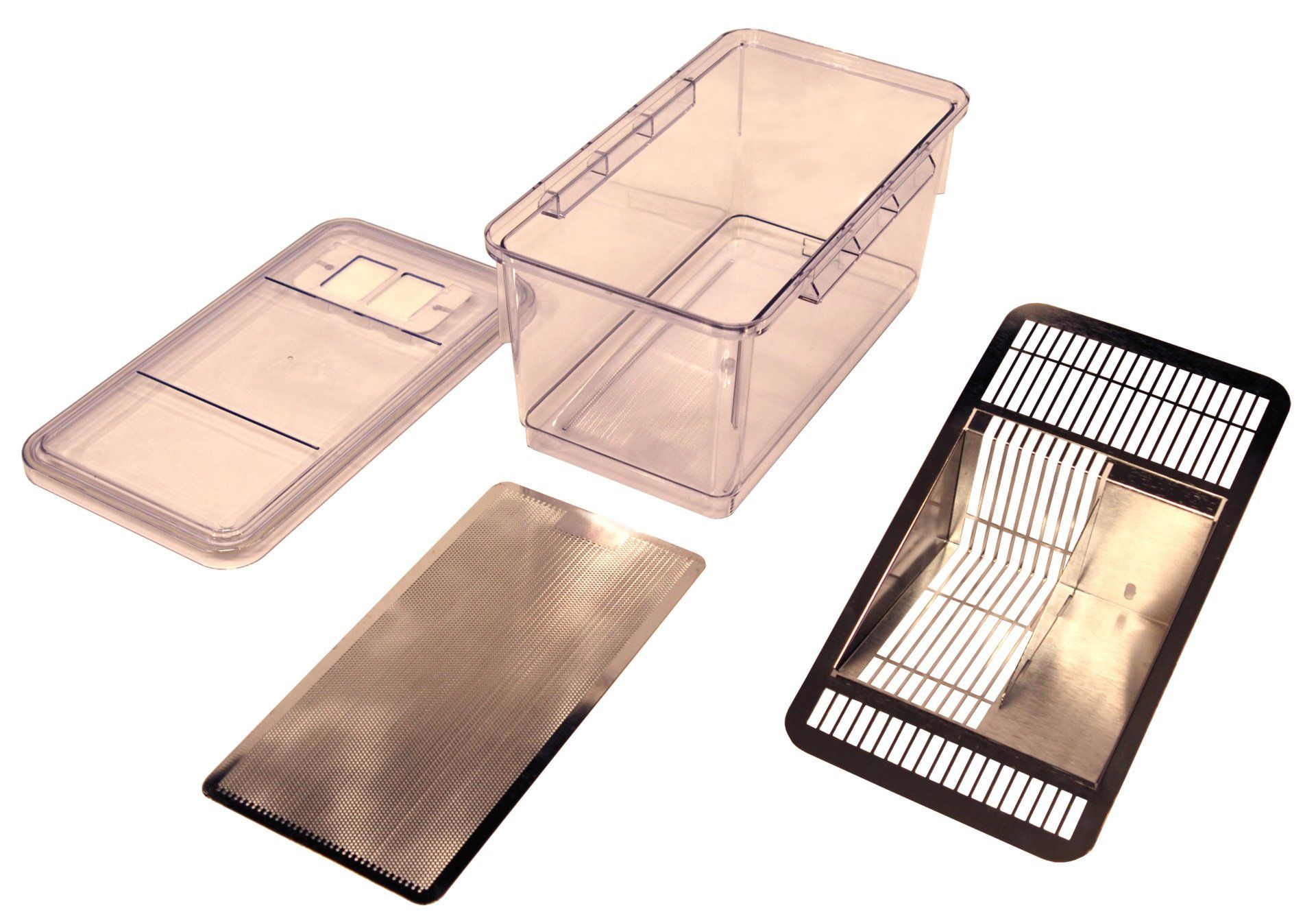

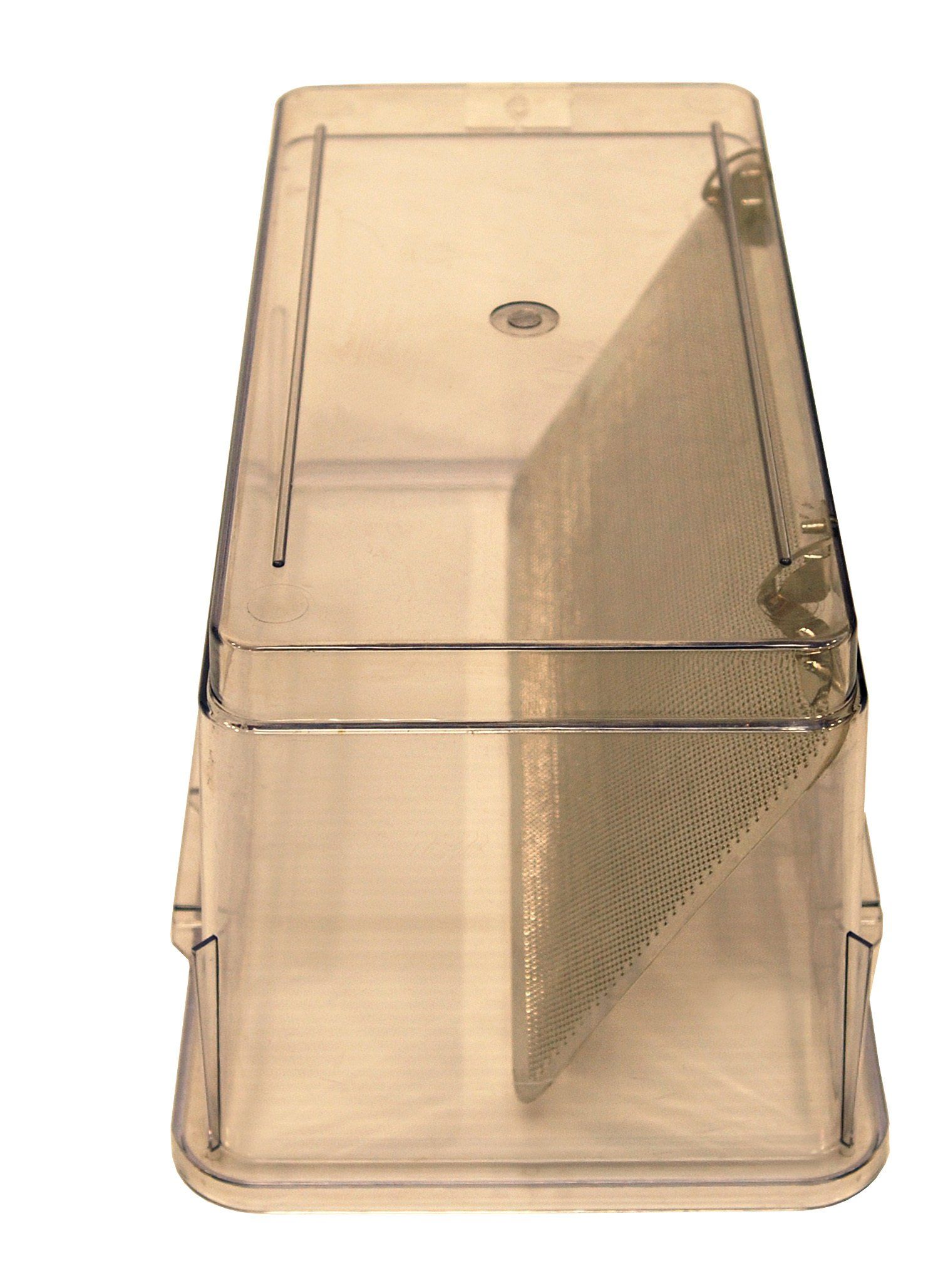

Cage is 82 sq. in. suitable for breeding trios


Sealed cages that trap all dander, pathogens and particles


No disassembly of the rack for cleaning or disinfecting


Polysulfone cages repeatedly autoclavable to 134 C (continuously for 15 minutes)

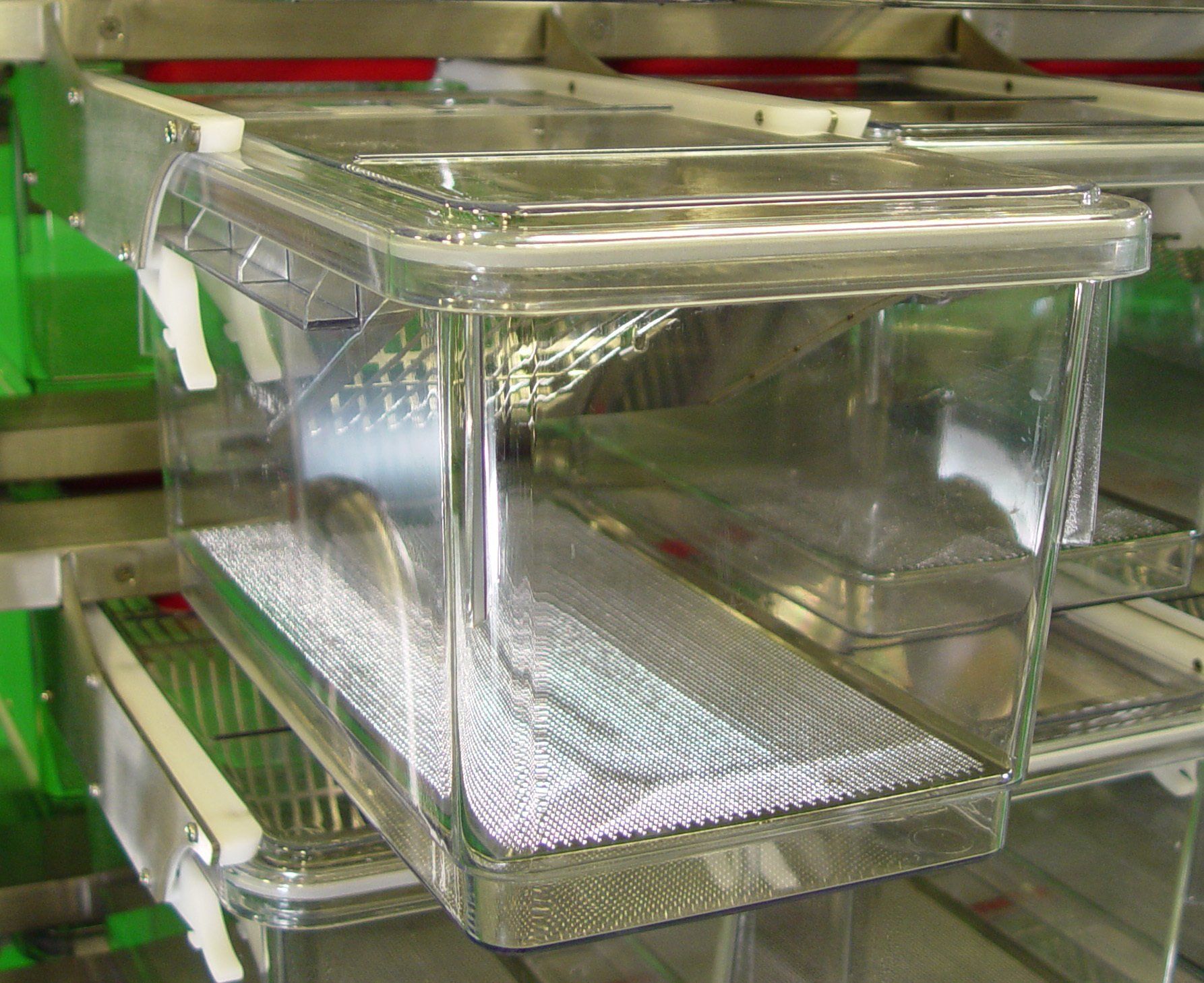

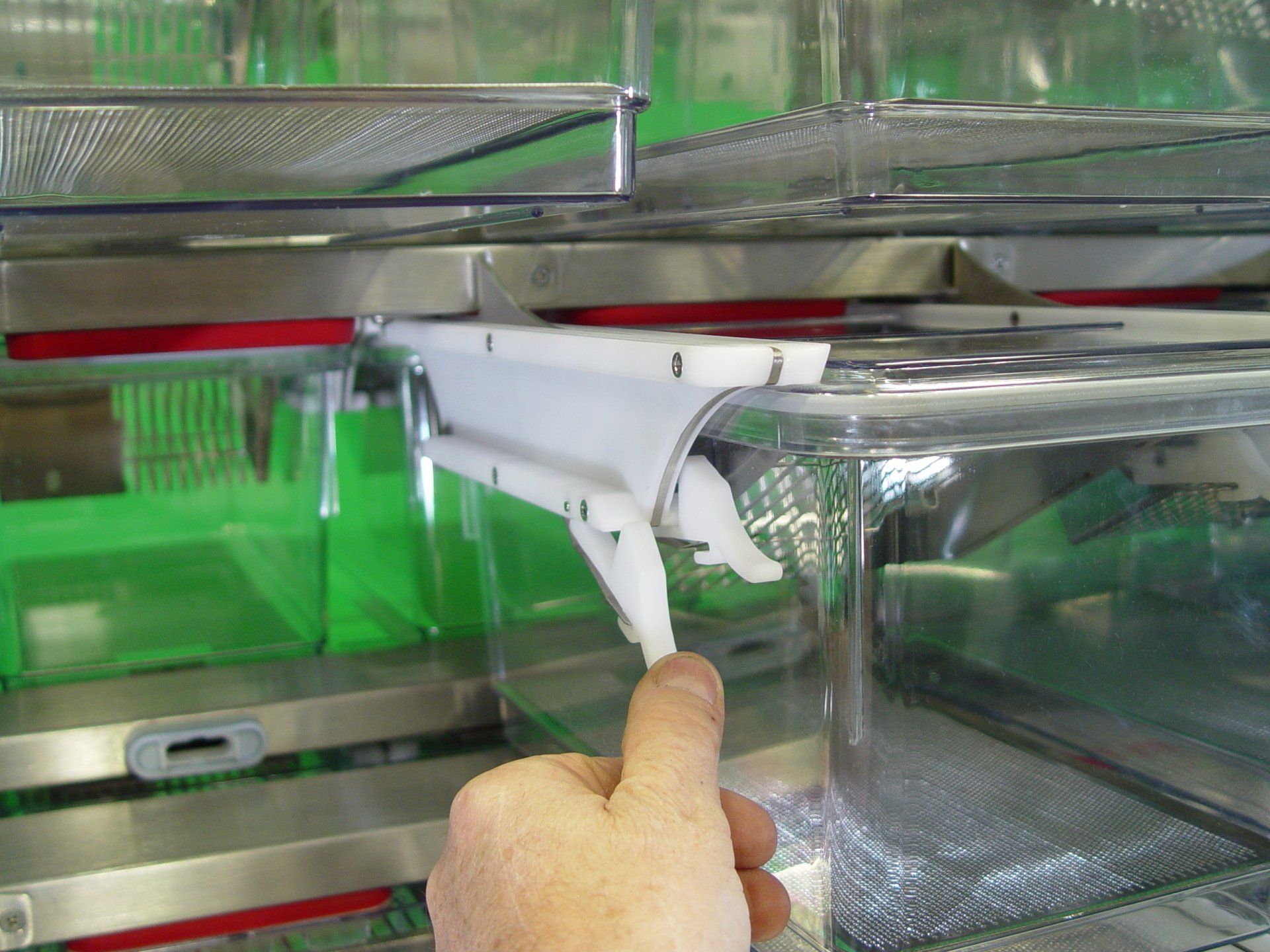

Cages are retained in place by spring loaded locking tabs


Inlet and outlet ports seal to the rack with silicone sealing gaskets


Cage level exhaust filter


Stainless steel feeder/water bottle holder


Bottle watering .is a 14 oz. square high


High temperature plastic bottle with stainless steel snap on/off cap


Clear plastic 2-1/2 x 3” card holder


Stainless Steel Castor rigs, with 5” x  2” Kryptonic Wheels and Precision Stainless Steel Bearings in the Axle and Raceway. All Have Zerks and Two have "Total Lock" Brakes Which Lock the Swivel and Axle Simultaneously

Here's a List, but check out the pictures below

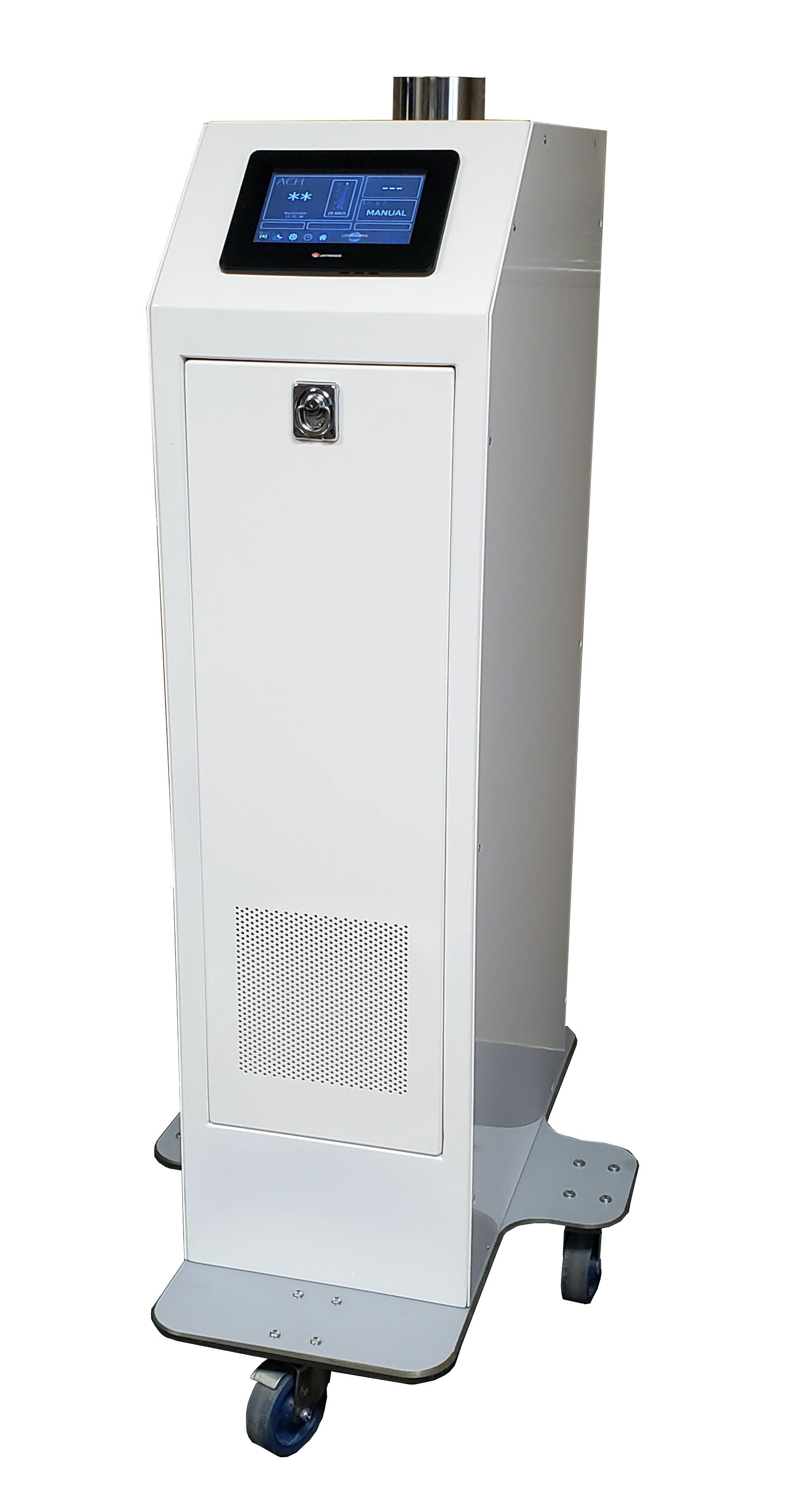

AirSentry II  Air Supply and Exhaust Module


Single or double sided racks


Bottle Watering


Reverse “S” Edstrom stainless steel auto-watering System


Unit will monitor and report airflow, temperature, humidity and pressure


Uninterruptible power supply


CO2, Ammonia sensors


Water leak alarm


Data logging


Browse Hygieia Ventilated Cage Features
